This page contains three examples of optimized (locally periodic) microstructures.

In all examples, the body occupies a rectangle of size 1.5x1 and is clamped on its left side. See the preprint.

The results here presented were obtained by allowing the two vectors defining the periodicity cell to vary along the optimization process. For comparison, results obtained with a fixed (square) periodicity cell can be found here

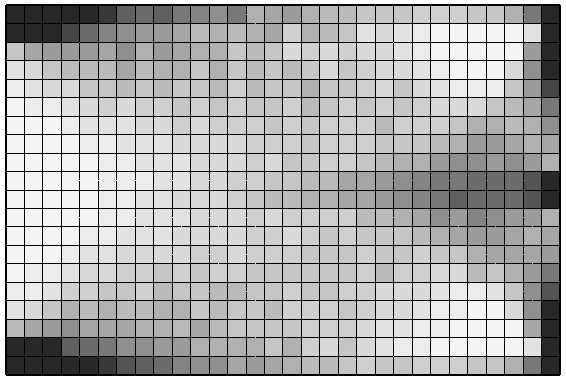

First example : one force in the middle of the right side (see the figure above left). In the figure above right, the optimized structure is represented. Click on the image to see details.

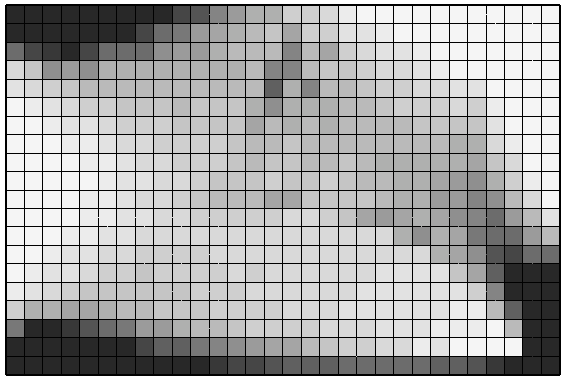

Second example : one force in the lower right corner (see the figure above left). In the figure above right, the optimized structure is represented. Click on the image to see details.

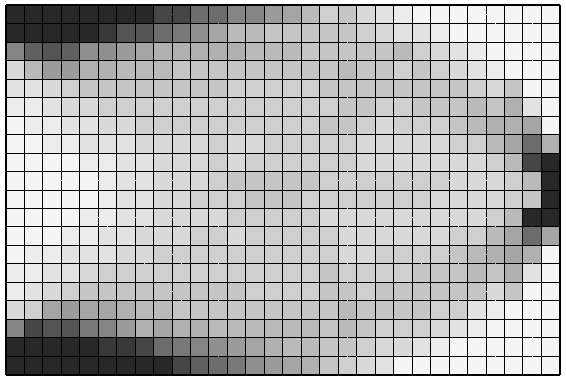

Third example : three forces on the right side acting independently of each other (see the figure above left). In the figure above right, the optimized structure is represented. Click on the image to see details.
